MBBR Hospital Wastewater Carbon Footprint: 0.50 kg CO2-eq/m3, 66% Lower Than MBR (Yichang Case Study)

Treating hospital wastewater is one of the most demanding jobs in water engineering. Beyond conventional pollutants, the stream carries pathogens, antibiotics, disinfectant byproducts, and pharmaceutical residues that push discharge limits to their most stringent tier. Meeting those limits has traditionally carried a heavy environmental price tag — until now. This real-world study from a Grade 3A hospital in Yichang, China, shows that an A/O-Mbbr System breaks the trade-off: a carbon intensity of just0.50 kg CO2-eq/m³, roughly 66% lower than equivalent membrane bioreactor (MBR) systems treating the same wastewater.

Why Hospital Wastewater Is a Carbon Problem

Hospital wastewater differs fundamentally from municipal sewage. It combines high organic loads with biologically active compounds that must be destroyed before discharge. The strictest standards leave treatment operators no margin for error, which historically pushed designers toward energy-hungry and chemical-intensive processes. The result: the treatment itself became a significant source of greenhouse gas (GHG) emissions.

The insight of this study is that process selection, not just treatment performance, determines the carbon outcome. By quantifying every emission source over a full year of operation — electricity, process methane (CH₄), nitrous oxide (N₂O), chemicals, and sludge transport — the analysis follows the IPCC 2019 guidelines and builds a complete, auditable carbon ledger. The numbers reveal exactly where the emissions hide and which levers deliver the biggest reductions.

The Plant And Process Under Study

A/O-MBBR Configuration at the 1,200 m³/d Hospital Station

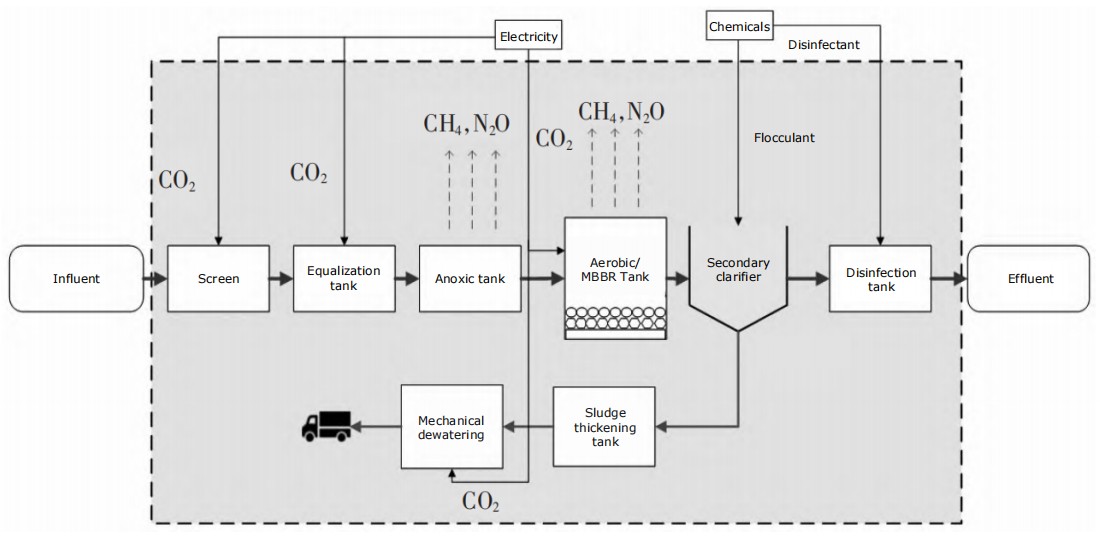

The treatment station was commissioned in 2020 with a design capacity of 1,200 m³/d. Its process train is compact and robust: an anoxic tank followed by an aerobic/MBBR tank, a secondary clarifier, and final disinfection. The Moving Bed Biofilm reactor packs a high density of biofilm carriers into the aerobic zone, so the system maintains a large active biomass within a small footprint — a critical advantage on hospital campuses where land is scarce.

Table 1 summarizes the 2023 annual operating data that feed the carbon accounting. Note the nitrogen performance: influent TN of 55 mg/L is reduced to just 15 mg/L, while CODCr drops from 420 to 38 mg/L — evidence that the process delivers stable, compliant treatment across the full year.

The single most striking figure in this table is unit power consumption of 0.70 kWh/m³. Because the biofilm carriers replace part of the suspended biomass, the aeration system does not need to keep a huge mixed-liquor inventory suspended, and there is no membrane scouring aeration at all. That one design choice ripples through the entire carbon balance.

Carbon Accounting Results

Total Annual Emissions: 182.15 t CO2-eq

Table 2 breaks down the greenhouse gas inventory by source and scope. The carbon intensity works out to 0.50 kg CO2-eq/m³ — a figure comparable to conventional municipal wastewater treatment, which is remarkable given the far more hazardous nature of the feed stream.

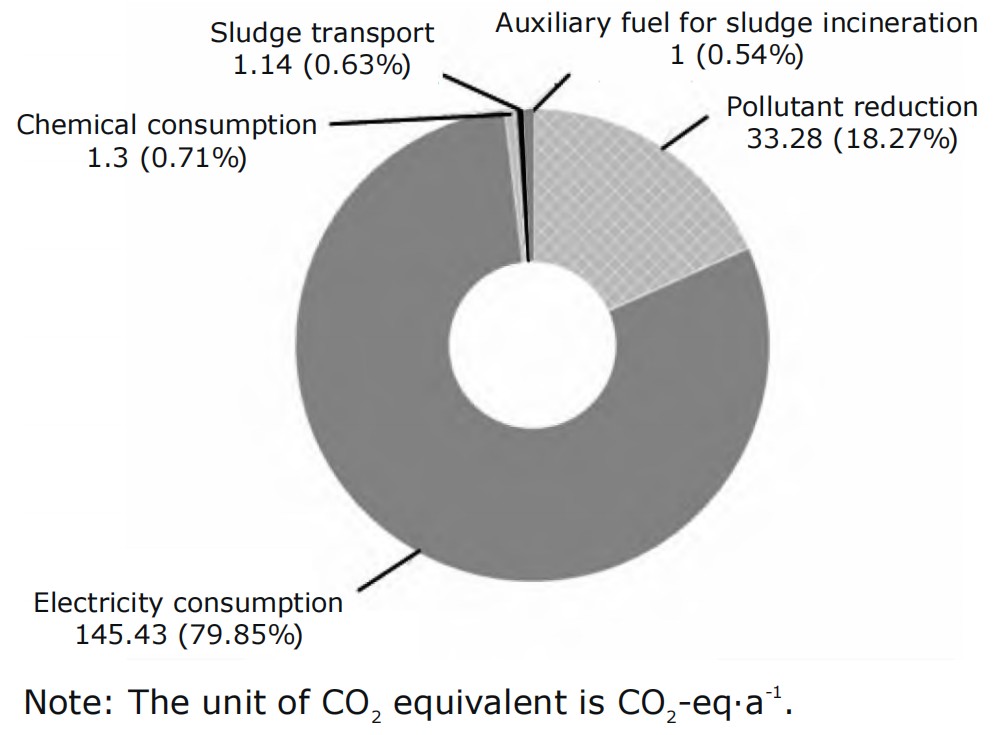

The composition chart below makes the story visual: one source dominates, and it is the source operators can actually control.

Key Findings From The Inventory

1. Electricity Dominates at 79.85%

At 0.70 kWh/m³, the system's unit power is noticeably lower than membrane systems, which must consume extra energy for membrane scouring aeration. This concentration of emissions in a single, well-understood category means that improving aeration efficiency attacks the largest source directly — every kilowatt-hour saved has an immediate, measurable carbon benefit.

2. Direct GHG Emissions Are Second-Largest at 18.27%

Process CH₄ (12.45%) and N₂O (5.82%) carry high global warming potentials — N₂O is roughly 273 times CO₂ over 100 years. These are generated inside the biological process itself. The finding is actionable: process optimization that balances dissolved oxygen and recirculation rates can simultaneously improve nitrogen removal and suppress N₂O generation, cutting both pollutant load and carbon footprint.

3. Chemical Carbon Footprint Is Near-Zero at 0.71%

The system uses only sodium hypochlorite for disinfection and PAC for coagulation. There is no membrane cleaning chemical demand at all — an inherent advantage of biofilm carriers over membranes. This makes the chemical carbon footprint over 11 times lower than an equivalent MBR system.

4. Sludge Disposal Is Minor at 1.17%

Wet sludge sent to incineration contributes only 1.17% of the total carbon. The low sludge yield of MBBR systems, driven by the slow-growing biofilm fraction, keeps downstream handling costs and emissions contained.

MBBR Vs MBR: A 66% Carbon Advantage

The most compelling evidence comes from direct comparison. A recent study of MBR hospital systems (He Junqing et al.) reported carbon intensities for comparable installations, and the gap is dramatic:

Two mechanisms explain the advantage. First, energy efficiency: at 0.70 versus 0.93 kWh/m³, the MBBR avoids the high-intensity membrane scouring aeration that MBR systems cannot live without. Second, chemical elimination: membranes demand periodic chemical cleaning with the associated embodied-carbon and transport footprints, while MBBR has zero membrane cleaning demand. Both factors compound to deliver the 66% carbon reduction.

Pathways To Further Carbon Reduction

The carbon ledger also points the way forward. Three upgrades can push the system lower still:

Aeration upgrades. Replacing Roots blowers with magnetic levitation blowers, combined with dissolved oxygen (DO) feedback control, can cut the largest emission category at its source by matching aeration supply to real-time demand.

Process optimization. Fine-tuning DO setpoints and recirculation ratios suppresses N₂O generation, directly lowering the 5.82% share contributed by this potent greenhouse gas.

Renewable energy. Rooftop solar photovoltaic coverage of just 10% of demand would reduce roughly 14.5 t CO₂/year — an attractive, visible step toward a net-zero hospital campus.

Key Takeaways

MBBR is a genuinely low-carbon solution for hospital wastewater, delivering 0.50 kg CO2-eq/m³ — comparable to conventional municipal treatment despite the far more hazardous feed stream.

The 66% carbon advantage over MBR is driven by elimination of membrane chemicals and lower energy demand, not by sacrificing treatment performance.

Electricity is the dominant lever at 79.85%, so aeration efficiency improvements have direct, quantified impact.

The near-zero chemical carbon footprint (0.71%) is a distinctive, hard-to-replicate advantage.

Direct GHG emissions (18.27%) deserve explicit attention in process design, since they are the most responsive to operational tuning.

Conclusion

This real-world case demonstrates that MBBR can treat challenging hospital wastewater while maintaining a carbon footprint 66% lower than equivalent MBR systems. The combination of lower energy consumption, zero membrane chemicals, and robust treatment performance makes MBBR a compelling choice for medical wastewater — especially for facility managers and design engineers who must satisfy both treatment compliance and institutional carbon-reduction goals at the same time.
