Fine Bubble Disc Diffuser for Wastewater Treatment: Cut Aeration Energy by 35% and Lift Oxygen Transfer Efficiency to 32%

Aeration is the single largest electricity consumer in a municipal Wastewater Treatment plant (WWTP), silently driving60-70% of total plant energy usage. Yet most plants still bleed money through coarse bubble systems that waste compressed air. Fine Bubble Disc diffusers attack this problem at the source: they shatter air into micron-scale bubbles that stay in the water longer, transferring dramatically more oxygen per kilowatt-hour and cutting blower energy by 30-40%.

Why Aeration Dominates Wwtp Energy Costs

Biological treatment relies on oxygen-hungry microorganisms that digest organic pollutants. The blowers feeding them run around the clock, and because air compressors are inherently inefficient, the aeration stage consumes more power than pumping, screening, and sludge handling combined. In older plants fitted with coarse bubble diffusers, much of that energy is wasted: large bubbles rise fast, vent to the surface, and never dissolve into the mixed liquor.

The economics are unforgiving. Every percentage point of oxygen transfer efficiency (OTE) gained translates directly into blower load reduction. This is why fine bubble disc diffusers have become the default choice for both greenfield projects and retrofit upgrades across the municipal and industrial sectors.

How A Fine Bubble Disc Diffuser Works

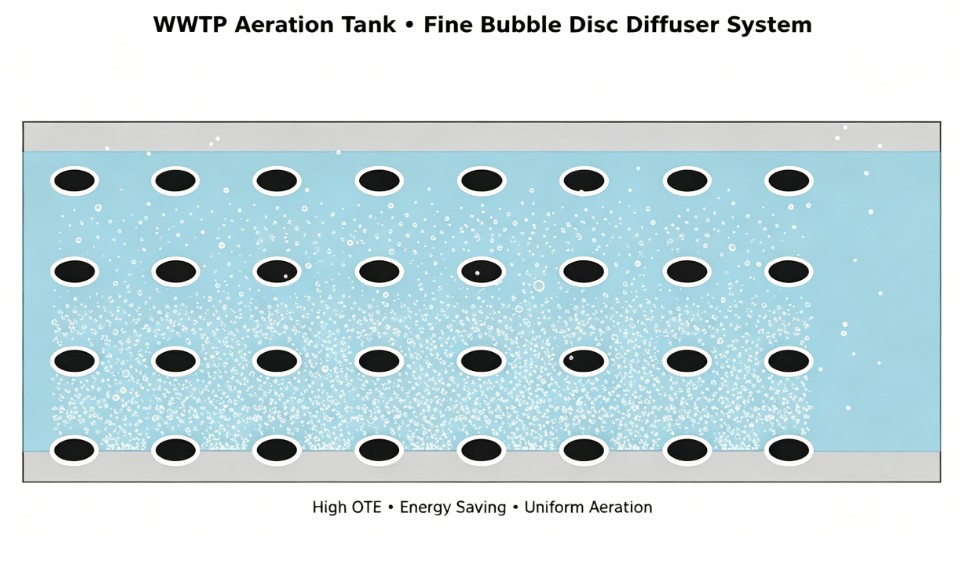

A disc diffuser is a compact aeration device mounted on the floor of an aeration tank. A flexible membrane, typically EPDM or silicone, is stretched over a rigid disc body. Compressed air from the blower inflates the membrane, and precision laser-cut or punched holes release the air into the water as a dense cloud of microbubbles.

The small bubble diameter is the whole point. Microbubbles deliver three compounding benefits:

• Longer residence time — slower rise velocity keeps bubbles submerged longer, giving more time for oxygen to dissolve.
• Higher surface-to-volume ratio — more contact area between air and liquid per unit of airflow.
• Better mixing and biological activity — uniform micro-bubbles drive gentle circulation that keeps biomass in suspension without violent shear.

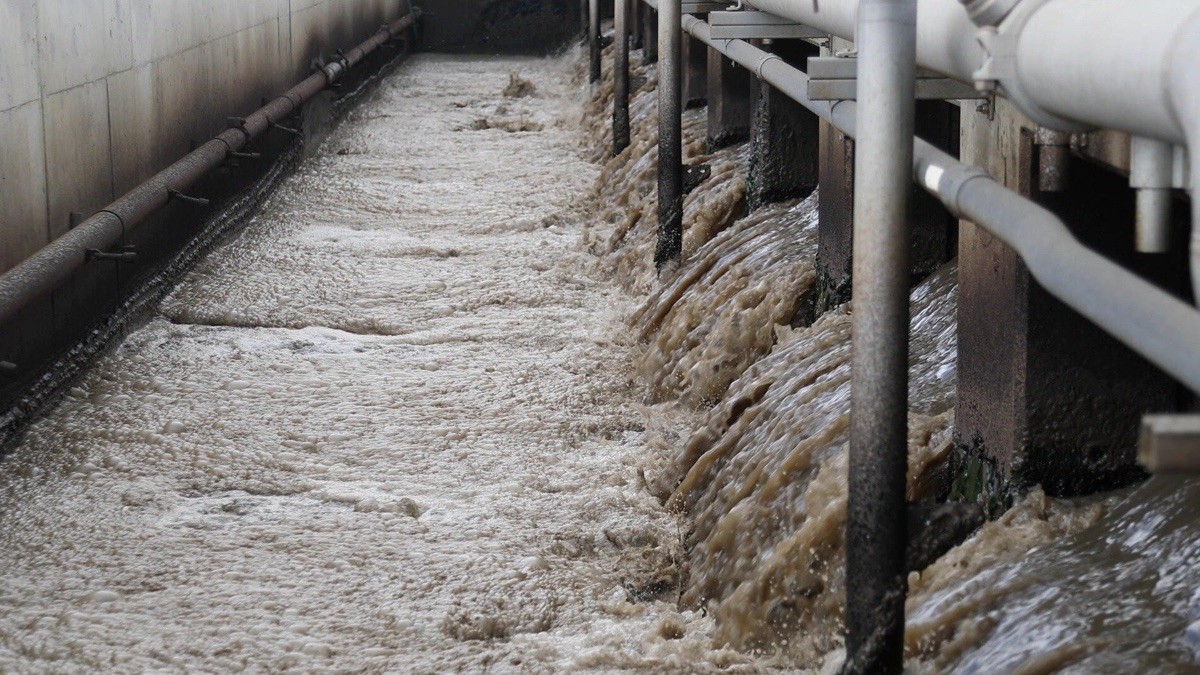

This combination makes fine bubble disc diffusers ideal for activated sludge systems, oxidation ditches, and sequencing batch reactors (SBR), where stable dissolved oxygen is essential for nitrification and sludge quality.

Five Engineered Advantages Of Disc Diffusers

1. High Oxygen Transfer Efficiency

Fine bubbles present a much larger air-water interface than coarse bubbles, improving oxygen transfer by 80-100% compared to coarse bubble systems. For a plant treating tens of thousands of cubic meters daily, this is the difference between running two blowers and running three.

2. Energy Saving Aeration System

Because more oxygen dissolves per unit of airflow, blowers can operate at lower airflow and pressure. Plants typically cut aeration energy costs by 30-40% after switching to disc diffusers, a saving that often pays for the retrofit within two to three years.

3. Uniform Air Distribution

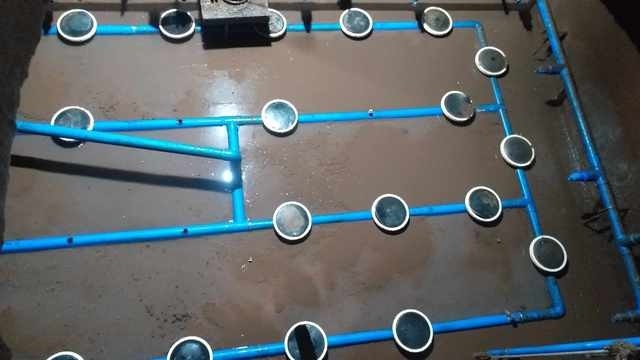

A grid layout of disc diffusers spreads air evenly across the full tank footprint, eliminating dead zones where oxygen starves the biomass and produces offensive odors.

4. Long Service Life

High-quality EPDM membranes resist oils, fats, and chemicals found in wastewater. Even in harsh conditions, a well-maintained EPDM disc diffuser can last 5-8 years before membrane replacement is required.

5. Easy Installation and Retrofit

Disc diffusers bolt onto existing air piping, so they can be installed in operating tanks without major civil works. This modularity makes them the fastest route to upgrading an underperforming aeration system.

Case Study: 35,000 M3/D Municipal Upgrade

Project Overview

A municipal WWTP in Southeast Asia, treating 35,000 m3/day through an activated sludge process, faced chronic aeration shortfalls that threatened its discharge compliance.

Challenges Before Upgrade

• Low oxygen transfer efficiency below 15%
• High energy consumption from oversized blowers
• Unstable dissolved oxygen (DO) levels
• Poor sludge settling and rising effluent BOD

Disc Diffuser System Design

The plant replaced its coarse bubble diffusers with fine bubble EPDM disc diffusers configured as a bottom-mounted grid. The key design parameters were:

The 90% coverage ratio was deliberately chosen to keep the tank floor fully active, while the 2.5-5 m3/h airflow window allowed operators to trim blower output during low-load night hours.

Performance Comparison: Before Vs After

Results And Economic Benefits

The measured outcomes show why the plant commissioned the retrofit in the first place:

• 35% reduction in energy costs, freeing budget for other plant improvements.
• Stable compliance with discharge regulations, with effluent BOD cut to ≤15 mg/L.
• Improved sludge settling and system stability, reducing clarifier overload.
• Lower maintenance frequency thanks to the durable EPDM membrane and clean-bore hole design.

Best Practices For Disc Diffuser Aeration

• Design the layout properly — match diffuser density to the oxygen demand profile of each aeration zone.
• Match blower pressure to system demand — over-pressurized blowers waste energy and stress membranes.
• Perform routine cleaning to prevent membrane fouling and clogging that inflate backpressure.
• Monitor DO and trim airflow continuously so aeration follows the actual organic load.

Conclusion

Installing a disc diffuser for wastewater treatment is one of the most effective ways to raise aeration efficiency and cut operating costs. Whether you are building a new plant or retrofitting an aging one, fine bubble disc diffusers deliver a reliable, energy-saving solution with a proven payback — as the 35,000 m3/d Southeast Asia case demonstrates.
