Disc Diffuser Technology: Optimizing Aeration Efficiency in WasteWater Treatment

Fundamental Principles of Fine Bubble Disc Diffuser Operation

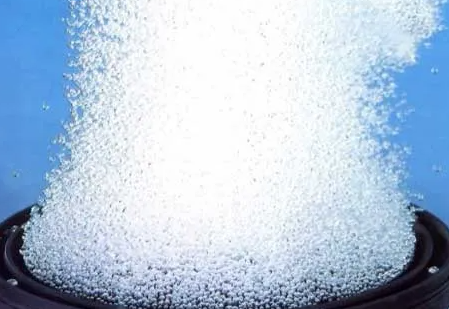

Disc diffusers represent crucial aeration components in modern wastewater treatment systems, delivering exceptional oxygen transfer efficiency through advanced fine bubble technology. As a wastewater treatment specialist with extensive field experience, I have witnessed how these systems have revolutionized biological treatment processes across numerous applications. The fundamental operating principle involves forcing compressed air through flexible membrane materials containing precisely engineered pores or slits that open under air pressure to release thousands of microscopic bubbles into the wastewater. These fine bubbles, typically ranging from 1-3 millimeters in diameter, create maximum surface area contact between air and water, dramatically enhancing oxygen dissolution rates compared to conventional coarse bubble systems.

The efficiency of disc diffusers stems from their ability to generate bubbles with optimal size distribution while maintaining low resistance to airflow. When compressed air enters the diffuser assembly, it uniformly distributes across the entire surface of the elastic membrane, causing the precisely cut orifices to expand and release a homogeneous cloud of micro-bubbles. These bubbles rise through the water column at relatively slow velocities, typically 0.2-0.3 meters per second, maximizing the contact time available for oxygen transfer. The extended residence time combined with the substantial interfacial area creates ideal conditions for efficient mass transfer, making disc diffusers the preferred choice for energy-conscious treatment facilities.

The performance of disc diffusers depends on several interrelated factors including membrane material, pore density and geometry, airflow rates, and operating depth. Properly designed systems achieve optimal balance between these parameters to maximize oxygen transfer while minimizing fouling potential and maintenance requirements. The modular nature of disc diffuser installations allows for flexible implementation in various tank configurations, providing operational adaptability that can be fine-tuned to match specific process requirements and loading conditions.

---

Critical Design Characteristics of High-Performance Disc Diffusers

Membrane Material Technology and Selection Criteria

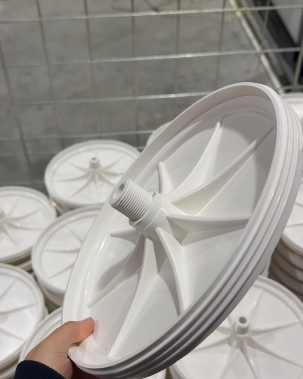

The elastomeric membrane represents the heart of disc diffuser technology, with material composition directly influencing performance, durability, and fouling resistance. Modern membranes typically utilize EPDM (ethylene propylene diene monomer), silicone, or polyurethane compounds, each offering distinct advantages for specific applications. EPDM membranes provide excellent resistance to ozone and chemical degradation, making them ideal for applications where ozone disinfection or aggressive industrial components are present. Silicone membranes offer superior fouling resistance and flexibility at lower temperatures, while polyurethane variants demonstrate exceptional abrasion resistance and durability under high-intensity aeration conditions.

The pore geometry and distribution across the membrane surface significantly impact both oxygen transfer efficiency and long-term operational stability. Precision laser-cutting or mechanical punching creates slit patterns that optimize bubble size distribution while preventing water ingress during off-cycle periods. The pore density typically ranges from 1,500 to 3,000 openings per square meter, balanced to provide sufficient bubble release points without compromising membrane structural integrity. Advanced manufacturing techniques ensure consistent pore dimensions that remain stable throughout the membrane's service life, maintaining predictable performance without the gradual efficiency degradation common in earlier generation diffusers.

Hydraulic and Aerodynamic Performance Parameters

The oxygen transfer efficiency (OTE) of disc diffusers represents their most critical performance metric, typically ranging from 25-40% per meter of submergence under standard conditions. This efficiency stems from the optimal bubble size distribution that maximizes the surface-to-volume ratio while minimizing coalescence during ascent. The specific oxygen transfer rate (SOTR), expressed as kilograms of oxygen transferred per kilowatt-hour, typically falls between 4.5-6.5 kgO₂/kWh for properly designed systems, representing a significant improvement over coarse bubble and other aeration technologies. This enhanced efficiency translates directly to substantial energy savings, with modern disc diffuser installations typically reducing aeration energy consumption by 30-50% compared to conventional systems.

The hydraulic flow patterns created by disc diffusers contribute significantly to overall system performance beyond mere oxygen transfer. The rising bubble columns induce liquid circulation that maintains solids in suspension and ensures uniform mixing throughout the aeration basin. This simultaneous oxygenation and mixing function eliminates the need for separate mixing equipment, simplifying system design and reducing capital costs. The vertical flow currents created by strategically positioned diffuser grids prevent dead zones where solids could accumulate, ensuring complete utilization of the reactor volume and maintaining consistent treatment performance across variable loading conditions.

Table: Performance Comparison of Disc Diffuser Membrane Materials

Operational Advantages of Disc Diffuser Systems

Energy Efficiency and Process Performance

Disc diffusers deliver exceptional energy efficiency through their fine bubble technology, directly translating to reduced operational costs and environmental impact. The small bubble size creates maximum interfacial area for oxygen transfer, significantly improving the mass transfer coefficient compared to coarse bubble alternatives. This enhanced efficiency allows treatment plants to achieve target dissolved oxygen levels using less compressed air, reducing blower energy requirements substantially. With aeration typically representing 50-70% of a treatment plant's total energy consumption, these savings produce meaningful economic benefits while supporting sustainability initiatives through reduced carbon emissions.

The process stability afforded by disc diffusers contributes to more consistent treatment performance, particularly under variable loading conditions. The uniform bubble distribution creates steady oxygenation patterns that prevent dissolved oxygen fluctuations that could disrupt biological treatment processes. This stability proves particularly valuable for nutrient removal applications where precise oxygen control is essential for maintaining the alternating anaerobic/anoxic/aerobic conditions required for biological phosphorus removal and denitrification. The mixing action provided by the rising bubble columns ensures uniform distribution of substrates and microorganisms, optimizing reaction rates and preventing localized zones of oxygen deficiency or excess.

Maintenance and Operational Flexibility

The modular design of disc diffuser systems provides significant operational advantages through flexible airflow control and straightforward maintenance access. Individual diffuser elements can be easily removed for inspection or replacement without draining the aeration tank or taking entire sections offline. This modularity enables targeted maintenance interventions that minimize system downtime and reduce labor requirements. Additionally, the distributed diffuser layout allows for zoning strategies that adjust aeration intensity according to spatial variations in oxygen demand, further optimizing energy utilization across diurnal and seasonal loading variations.

The fouling resistance of modern disc diffuser designs has improved significantly through material advances and operational strategies. The elastic nature of high-quality membranes promotes self-cleaning action during operation, as the flexing motion during air-on/air-off cycles helps dislodge accumulating solids. Strategic air pulsation protocols can enhance this cleaning effect without compromising treatment performance. For applications with high fouling potential, various cleaning methods including acid washing, high-pressure water jetting, or chemical soaks can restore performance without membrane damage. These maintenance features extend service intervals and maintain efficiency throughout the operational lifecycle.

---

Implementation Considerations for Disc Diffuser Systems

System Design and Integration Parameters

The successful implementation of disc diffuser technology requires careful consideration of multiple design factors to match specific application requirements. The diffuser density, typically ranging from 2-8% of tank floor area, must balance oxygenation needs with mixing requirements to prevent solids deposition. The submergence depth significantly impacts oxygen transfer efficiency through its influence on bubble contact time and hydrostatic pressure, with deeper installations generally providing higher OTE but requiring greater air pressure. The specific diffuser layout—typically grid, panel, or full-floor configurations—affects both oxygenation patterns and hydraulic mixing characteristics, requiring customized approaches based on basin geometry and process objectives.

The air distribution system design represents another critical consideration, with proper piping layout and sizing essential for maintaining uniform airflow to all diffusers. Balanced air distribution prevents uneven aeration that could create dead zones or over-aerated sections, both of which compromise treatment efficiency. The air filtration system must provide adequate protection against particulate matter that could clog diffuser pores or damage blower equipment. These integrated design elements must work in concert to ensure optimal system performance, highlighting the importance of comprehensive planning that addresses both aeration equipment and supporting infrastructure.

Comparative Analysis with Alternative Aeration Technologies

When evaluated against other aeration approaches, disc diffusers demonstrate distinct advantages in specific applications while presenting certain limitations that must be considered during technology selection. Compared to coarse bubble diffusers, disc systems provide superior oxygen transfer efficiency but may have higher fouling potential in applications with high suspended solids or scaling tendencies. Versus surface aerators, disc diffusers offer better energy efficiency for deep tanks but less effective mixing in some configurations. The technology selection process must balance these technical considerations with economic factors including capital cost, operational expenses, and maintenance requirements to determine the optimal solution for each specific application.

The life-cycle cost analysis typically favors disc diffusers for continuous operation applications where energy savings outweigh the higher initial investment. The modular nature allows phased implementation and straightforward capacity expansion, providing flexibility for growing facilities. However, for applications with highly variable loading or frequent process interruptions, alternative technologies with lower fouling potential or different operational characteristics may prove more appropriate. This comparative perspective ensures technology selection aligns with both immediate needs and long-term operational strategy, maximizing return on investment while ensuring reliable process performance.
